Slide-Lock™ Series

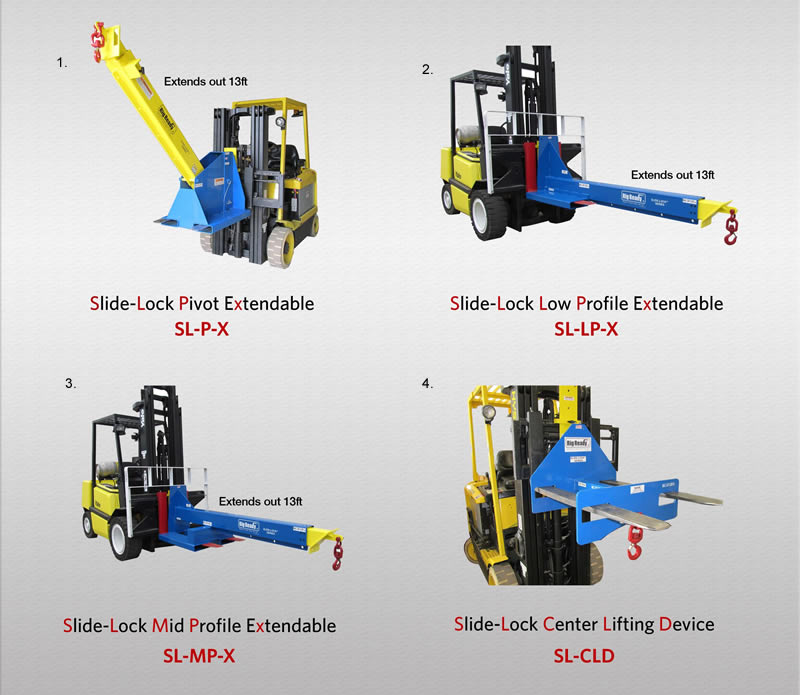

Available in 4,000, 6,000 & 8,000 lb. capacities Extendable & Non-Extendable in each model. SL-CLD Models available in 4,000, 6,000, 8,000 & 12,000 lb. models.

alt

The Ultimate in Quality, Innovation & Safety

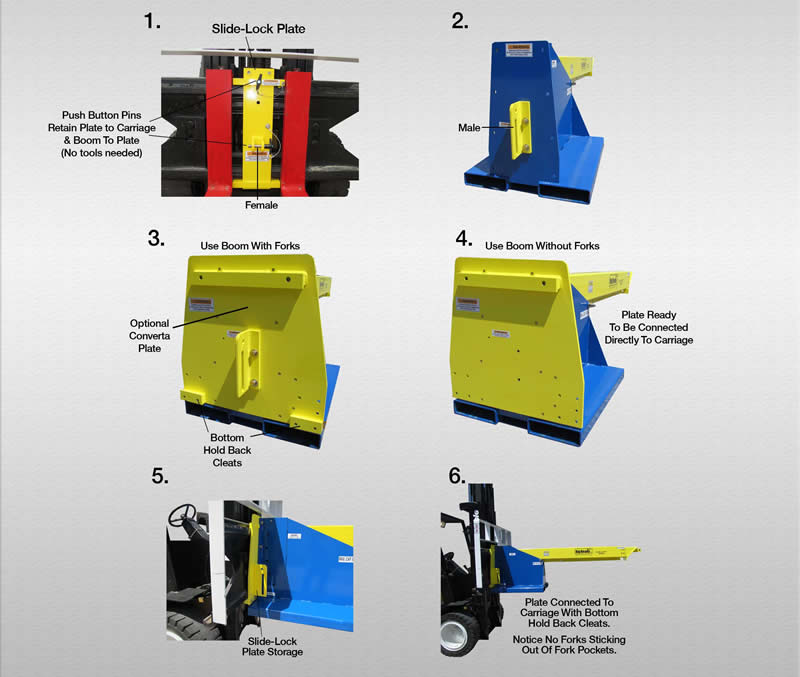

Patented Slide-Lock makes a secure connection to the carriage & eliminates boom slide off.

alt

Patented Coverta-Plate allows the operator to use the boom with the forks on OR off the forklift and keep the ground man's head away from the forks & injury.

Using the Coverta-Plate and the forks off the forklift also allows the operator to get the boom closer to the object that is being lifted allowing for maximum lifting capacity.

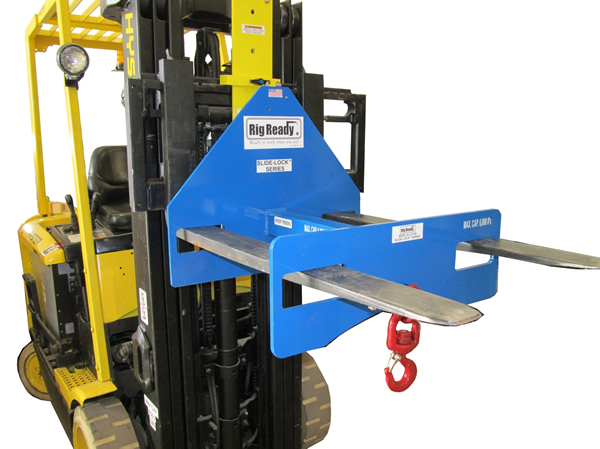

Model SL-CLD

Available in 4,000, 6,000, 8,000, & 12,000 lb. capacity.

Boom Features:

  • Safety: Patented Slide-Lock™ Mounting Plate eliminates chain and hook fall off allowing the boom to slide off the end of the forks with possible fatalities to the ground person or operator.
  • One plate is adaptable to fit on Class II, Class III and Class IV forklifts, or you can order Class specific plates.
  • Slide-Lock™ Mounting Plate has easy installation with 2 push-button quick locking detent hitch pins and includes 1-Crosby shackle and 1-Crosby swivel hook.
  • Pockets for forks are 3”H x 6 ¼”W.
  • Easy installation: No tools are required to install plate to the carriage or the plate to the boom.
Slidelock SL-CLD

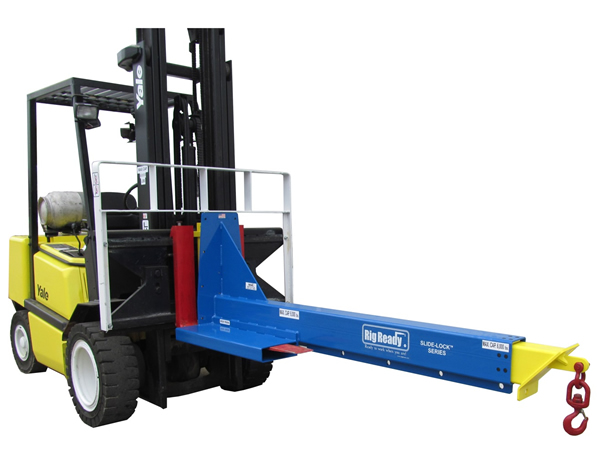

Slide-Lock™ Series Model SL-LP-X

Available in 4,000, 6,000 & 8,000 lb. capacities & Non-Extendable in each model.

Boom Features:

  • Safety: Patented Slide-Lock™ Mounting Plate eliminates chain and hook fall off allowing boom to slide off the end of the forks.
  • Slide-Lock™ Mounting Plate has easy installation with 2 push-button quick locking hitch pins and includes 1-Crosby shackle and 1-Crosby swivel hook.
  • Safety: Patented Slide-Lock™ Mounting Plate eliminates chain and hook possible fall off allowing the boom to slide off the end of the forks.
  • Slide-Lock™ Mounting Plate has easy installation with 2 push-button quick locking detent hitch pins and includes 1-Crosby shackle and 1-Crosby swivel hook.
  • One plate is adaptable to fit on Class II, Class III and Class IV forklifts or you can order class specific plates.
  • Spring loaded T-Handle for easy horizontal adjustment.
  • Horizontal adjustments from 7‘6” - 13’ at 6” increments.
  • Built in head clearance lug at end of boom. Note: Gives maximum head room.
  • Fork pockets are ¼” X 3”H X 10”W tubing.
  • Easy installation: No tools are required to install plate to the carriage or the plate to the boom.
  • Optional: RigReady Converta-Plate. (Allows the operator to use the boom with OR without the forks on the carriage of the forklift.) Available on all Slide-Lock™ Models except SL-CLD.
sl_lpx

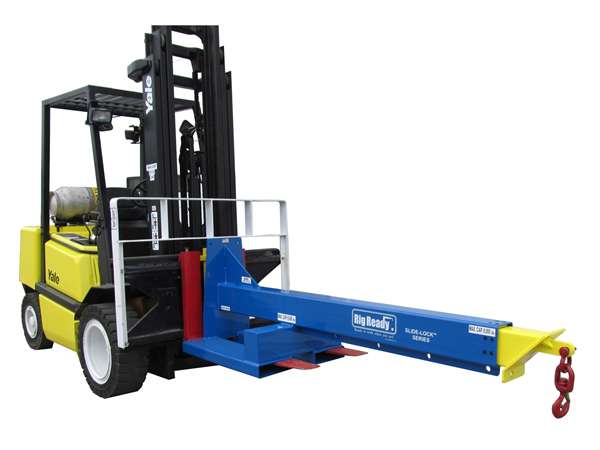

Slide-Lock™ Series Model SL-MP-X

Available in 4,000, 6,000 & 8,000 lb. capacities

Boom Features:

  • Safety: Patented Slide-Lock Mounting Plate that eliminates chain and hook possible fall off allowing boom to slide off the end of the forks.
  • Slide-Lock™ Mounting Plate has easy installation with 2 push-button quick locking detent hitch pins and includes 1-Crosby shackle and 1-Crosby swivel hook.
  • One plate is adaptable to fit on Class II, Class III and Class IV forklifts or you can order class specific plates.
  • Spring loaded T-Handle for easy horizontal adjustment.
  • Horizontal adjustments from 7‘6” - 13’ at 6” increments.
  • Built in head clearance lug at end of boom. Note: Gives maximum head room.
  • Fork pockets are ¼” X 3”H X 10”W tubing.
  • Easy installation: No tools are required to install plate to the carriage or the plate to the boom.
  • Optional: RigReady Converta-Plate. (Allows the operator to use the boom with OR without the forks on the carriage of the forklift.) Available on all Slide-Lock Models except SL-CLD.
mpx

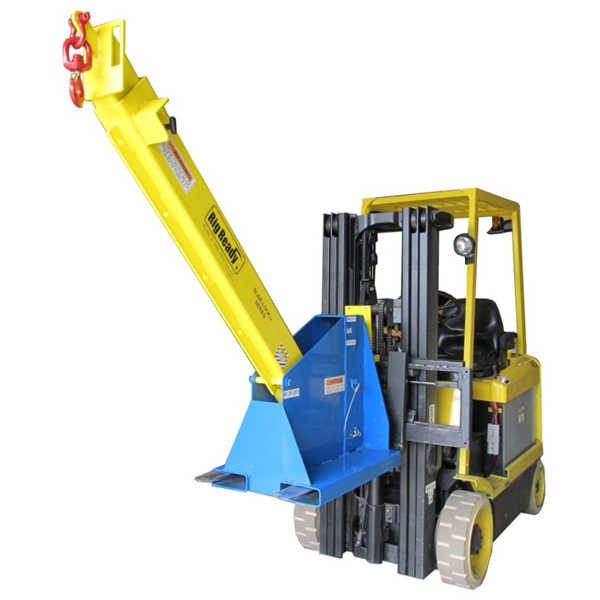

Slide-Lock™ Series Model SL-P-X

Available in 4,000, 6,000 & 8,000 lb. capacities & Non-Extendable in each model.

Boom Features:

  • Safety: Patented Slide-Lock Mounting Plate eliminates chain and hook fall off allowing boom to slide off the end of the forks.
  • Slide-Lock™ Mounting Plate has easy installation with 2 push-button quick locking hitch pins and includes 1-Crosby shackle and 1-Crosby swivel hook.
  • One plate that is adaptable to fit on Class II, Class III and Class IV forklifts, or you can order Class specific plates.
  • Horizontal adjustments from 7‘6” - 13’ at 6” increments.
  • Built in head clearance lug at end of boom. Note: Gives maximum head room.
  • Six adjustments to 45 degrees for maximum height.
  • 5’5” vertical reach height from floor to lug when boom is at 45 degrees and not extended.
  • 9’3” vertical reach height from floor to lug when boom is at 45 degrees and boom extended.
  • Spring loaded T-Handle for easy horizontal adjustment.
  • Spring loaded T-Handle for easy horizontal adjustment.
  • Easy installation: No tools are required to install plate to the carriage or the plate to the boom.
  • Optional: RigReady Converta-Plate. (Allows the operator to use the boom with OR without the forks on the carriage of the forklift.) Available on all SL-P-X Models.
sl-px

tilt_dimensions
